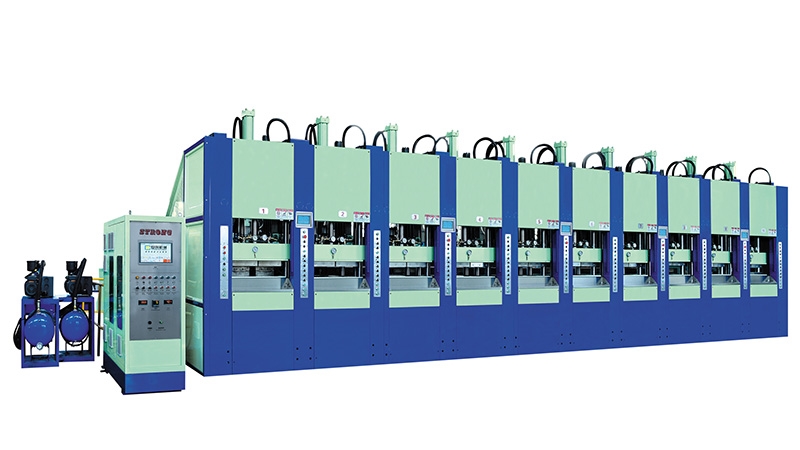

SC-906L2-DNP Automatic Foam EVA Vacuum Cover and Injection Moulding Machine （One/Multi-Color）
2.Full closed vancuum space creates efficient vacuum performance that makes high quality and stble products.
3.Don't need water circulation for mould station,using efficient heat insulation material.
4.Saving space for factory.
5.This machine can set up vacuum cover mode and single-color injection mode separately or at the same time.
6.This machine can produce flexible;it can produce single-color,double-color,multi-color and multi-type of soles and slippers at the same time.
| Model | Unit | SC-906L2G | SC-908L2G | SC-910L2G |
| Raw materials | EVA | EVA | EVA | |
| Work stations | 站/stations | 6 | 8 | 10 |
| Mould clamping force | ton | 220 | 220 | 220 |
| Mould size | mm | 290x550x2 | 290x550x2 | 290x550x2 |
| Mould opening stroke | mm | 360 | 360 | 360 |
| Screw diameter | mm | Φ65/Φ75 | Φ65/Φ75 | Φ65/Φ75 |
| Max injection capacity | g | 1060/1450 | 1060/1450 | 1060/1450 |
| Injection pressure | kg/cm² | 1100 | 1100 | 1100 |
| Injection speed | cm/sec | 10 | 10 | 10 |
| Screw rotating speed | r.p.m | 0-110 | 0-110 | 0-110 |
| Temperature control | 段/stations | 4 | 4 | 4 |
| Heating power of barrel | kw | 13 | 13 | 13 |
| Heating power of mould | kw | 74 | 98 | 122 |
| Total electricity | kw | 136 | 160 | 184 |
| Oil tank capacity | l | 1000 | 1000 | 1000 |
| Machine size (L*W*H) | mm | 7880x480x2950 | 9940x4800x2950 | 12000x4800x2950 |
| Machine weight | kg | 27300 | 36000 | 44500 |
| The above technical datas are just for reference,in case of any change without any prior notices. | ||||
